#include <fe_evaluation_cell_inverse.h>

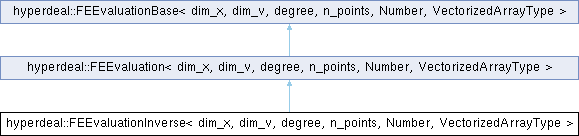

Inheritance diagram for hyperdeal::FEEvaluationInverse< dim_x, dim_v, degree, n_points, Number, VectorizedArrayType >:

Public Types
using	PARENT

Public Types inherited from hyperdeal::FEEvaluation< dim_x, dim_v, degree, n_points, Number, VectorizedArrayType >
using	PARENT

Public Types inherited from hyperdeal::FEEvaluationBase< dim_x, dim_v, degree, n_points, Number, VectorizedArrayType >
using	NUMBER_ = Number

using	VEC_NUMBER_ = VectorizedArrayType

using	MF = MatrixFree<dim_x, dim_v, Number, VectorizedArrayType>

using	VectorizedArrayTypeX = typename MF::VectorizedArrayTypeX

using	VectorizedArrayTypeV = typename MF::VectorizedArrayTypeV

Public Member Functions
	FEEvaluationInverse (const MatrixFree< dim_x, dim_v, Number, VectorizedArrayType > &matrix_free, const unsigned int dof_no_x, const unsigned int dof_no_v, const unsigned int quad_no_x, const unsigned int quad_no_v)

const dealii::AlignedVector< Number > *	get_inverse_shape () const

DEAL_II_ALWAYS_INLINE void	submit_inv (VectorizedArrayType *__restrict data_ptr, const unsigned int q, const unsigned int q1, const unsigned int q2)

Public Member Functions inherited from hyperdeal::FEEvaluation< dim_x, dim_v, degree, n_points, Number, VectorizedArrayType >
	FEEvaluation (const MatrixFree< dim_x, dim_v, Number, VectorizedArrayType > &matrix_free, const unsigned int dof_no_x, const unsigned int dof_no_v, const unsigned int quad_no_x, const unsigned int quad_no_v)

void	reinit (typename MatrixFree< dim_x, dim_v, Number, VectorizedArrayType >::ID cell_index) override

void	read_dof_values (const dealii::LinearAlgebra::distributed::Vector< Number > &src, VectorizedArrayType *data) const

void	read_dof_values (const dealii::LinearAlgebra::distributed::Vector< Number > &src)

void	set_dof_values (dealii::LinearAlgebra::distributed::Vector< Number > &dst) const

unsigned int	n_vectorization_lanes_filled () const

VectorizedArrayType	submit_inplace (const VectorizedArrayType data, const unsigned int q) const

VectorizedArrayType	submit_inplace (const VectorizedArrayType data, unsigned int, unsigned int qx, unsigned int qv) const

DEAL_II_ALWAYS_INLINE VectorizedArrayType	JxW (unsigned int qx, unsigned int qv) const

DEAL_II_ALWAYS_INLINE dealii::Tensor< 1, dim_x, VectorizedArrayType >	get_gradient_x (const VectorizedArrayType *__restrict grad_in, const unsigned int q, const unsigned int qx, const unsigned int qv) const

DEAL_II_ALWAYS_INLINE dealii::Tensor< 1, dim_v, VectorizedArrayType >	get_gradient_v (const VectorizedArrayType *__restrict grad_in, const unsigned int q, const unsigned int qx, const unsigned int qv) const

template<bool do_add>
DEAL_II_ALWAYS_INLINE void	submit_value (VectorizedArrayType *__restrict data_ptr_out, const VectorizedArrayType values_in, const unsigned int q, const unsigned int qx, const unsigned int qv) const

DEAL_II_ALWAYS_INLINE void	submit_gradient_x (VectorizedArrayType __restrict data_ptr_out, const VectorizedArrayType __restrict grad_in, const unsigned int q, const unsigned int qx, const unsigned int qv) const

DEAL_II_ALWAYS_INLINE void	submit_gradient_v (VectorizedArrayType __restrict data_ptr_out, const VectorizedArrayType __restrict grad_in, const unsigned int q, const unsigned int qx, const unsigned int qv) const

dealii::Point< dim, VectorizedArrayType >	get_quadrature_point (const unsigned int q) const

dealii::Point< dim, VectorizedArrayType >	get_quadrature_point (const unsigned int qx, const unsigned int qv) const

dealii::Point< dim_v, VectorizedArrayType >	get_quadrature_point_v (const unsigned int qv) const

Public Member Functions inherited from hyperdeal::FEEvaluationBase< dim_x, dim_v, degree, n_points, Number, VectorizedArrayType >
	FEEvaluationBase (const MatrixFree< dim_x, dim_v, Number, VectorizedArrayType > &matrix_free)

virtual	~FEEvaluationBase ()=default

VectorizedArrayType *	get_data_ptr ()

const dealii::AlignedVector< Number > *	get_shape_values () const

const dealii::AlignedVector< Number > *	get_shape_gradients () const

Additional Inherited Members
Static Public Attributes inherited from hyperdeal::FEEvaluation< dim_x, dim_v, degree, n_points, Number, VectorizedArrayType >
static const unsigned int	dim = dim_x + dim_v

static const unsigned int	static_dofs_per_cell_x = dealii::Utilities::pow(degree + 1, dim_x)

static const unsigned int	static_dofs_per_cell_v = dealii::Utilities::pow(degree + 1, dim_v)

static const unsigned int	static_dofs_per_cell = static_dofs_per_cell_x * static_dofs_per_cell_v

static const unsigned int	n_q_points_x = dealii::Utilities::pow(n_points, dim_x)

static const unsigned int	n_q_points_v = dealii::Utilities::pow(n_points, dim_v)

static const unsigned int	n_q_points = n_q_points_x * n_q_points_v

static const unsigned int	n_vectors = PARENT::n_vectors

static const unsigned int	n_vectors_v = PARENT::n_vectors_v

Static Public Attributes inherited from hyperdeal::FEEvaluationBase< dim_x, dim_v, degree, n_points, Number, VectorizedArrayType >
static const int	dim = dim_x + dim_v

static const unsigned int	n_vectors = MF::VectorizedArrayTypeX::size()

static const unsigned int	n_vectors_v = MF::VectorizedArrayTypeV::size()

static const int	static_dofs

Protected Attributes inherited from hyperdeal::FEEvaluation< dim_x, dim_v, degree, n_points, Number, VectorizedArrayType >
dealii::FEEvaluation< dim_x, degree, n_points, 1, Number, typename PARENT::VectorizedArrayTypeX >	phi_x

dealii::FEEvaluation< dim_v, degree, n_points, 1, Number, typename PARENT::VectorizedArrayTypeV >	phi_v

Protected Attributes inherited from hyperdeal::FEEvaluationBase< dim_x, dim_v, degree, n_points, Number, VectorizedArrayType >
dealii::AlignedVector< VectorizedArrayType >	data

const MF &	matrix_free

const dealii::MatrixFree< dim_x, Number, VectorizedArrayTypeX > &	matrix_free_x

const dealii::MatrixFree< dim_v, Number, VectorizedArrayTypeV > &	matrix_free_v

unsigned int	macro_cell_x

unsigned int	macro_cell_v

unsigned int	lane_y

unsigned int	macro

const dealii::AlignedVector< Number > *	shape_values

const dealii::AlignedVector< Number > *	shape_gradients

Detailed Description

template<int dim_x, int dim_v, int degree, int n_points, typename Number, typename VectorizedArrayType>
class hyperdeal::FEEvaluationInverse< dim_x, dim_v, degree, n_points, Number, VectorizedArrayType >

The same as FEEvaluation but specialized for inverse mass matrix.

TODO: rename?

Member Typedef Documentation

◆ PARENT

template<int dim_x, int dim_v, int degree, int n_points, typename Number , typename VectorizedArrayType >

using hyperdeal::FEEvaluationInverse< dim_x, dim_v, degree, n_points, Number, VectorizedArrayType >::PARENT

Initial value:

FEEvaluation<dim_x, dim_v, degree, n_points, Number, VectorizedArrayType>

hyperdeal::FEEvaluation::FEEvaluation

FEEvaluation(const MatrixFree< dim_x, dim_v, Number, VectorizedArrayType > &matrix_free, const unsigned int dof_no_x, const unsigned int dof_no_v, const unsigned int quad_no_x, const unsigned int quad_no_v)

Definition fe_evaluation_cell.h:83

Constructor & Destructor Documentation

◆ FEEvaluationInverse()

template<int dim_x, int dim_v, int degree, int n_points, typename Number , typename VectorizedArrayType >

hyperdeal::FEEvaluationInverse< dim_x, dim_v, degree, n_points, Number, VNumber >::FEEvaluationInverse	(	const MatrixFree< dim_x, dim_v, Number, VectorizedArrayType > &	matrix_free,
		const unsigned int	dof_no_x,
		const unsigned int	dof_no_v,
		const unsigned int	quad_no_x,
		const unsigned int	quad_no_v )

Constructor.

Member Function Documentation

◆ get_inverse_shape()

template<int dim_x, int dim_v, int degree, int n_points, typename Number , typename VNumber >

const dealii::AlignedVector< Number > * hyperdeal::FEEvaluationInverse< dim_x, dim_v, degree, n_points, Number, VNumber >::get_inverse_shape ( ) const

Return inverse shape function.

◆ submit_inv()

template<int dim_x, int dim_v, int degree, int n_points, typename Number , typename VectorizedArrayType >

DEAL_II_ALWAYS_INLINE void hyperdeal::FEEvaluationInverse< dim_x, dim_v, degree, n_points, Number, VNumber >::submit_inv	(	VectorizedArrayType *__restrict	data_ptr,
		const unsigned int	q,
		const unsigned int	q1,
		const unsigned int	q2 )

inline

Return product of data and 1/(|J|xw).

The documentation for this class was generated from the following file:

include/hyper.deal/matrix_free/fe_evaluation_cell_inverse.h
